Project Setup and Nomenclature

This guide outlines conventions for setting up and organizing a synthetic biology project. These conventions are intended to support clarity, reproducibility, and collaboration. The approach described here emphasizes a consistent, pre-planned structure for working with DNA and experiment metadata. While documentation systems vary across labs, any good system should have a clear scope, support structured naming, and promote project-wide consistency over time.

Defining a Project

A project is an independent, long-term research effort with a clear scientific or engineering goal. Each project should have a unique, single-token name (e.g., lycopene) that will be used consistently across documentation, file structures, plasmid names, and experiment records. Avoid informal or overlapping nicknames to ensure records remain searchable and unambiguous over time.

Projects are generally defined by scope: they may focus on a distinct application, scientific question, or system. They are often aligned with specific funding sources, collaborations, or distinct groups of people. For example:

Project: lycopene
Goal: Maximize lycopene production in E. coli by tuning the metabolic pathway.

This is distinct from other efforts that may be running in parallel, such as:

Project: stickbug
Goal: Build a surface-display system in Bacillus subtilis to test adhesion strength on plastic, glass, and food packaging materials.

Although these projects may share some techniques or tools, they target different applications and will generate separate materials and documentation.

Defining an Experiment

An experiment is a specific, bounded effort to test or implement one part of a larger project. Experiments are sequential and named using the project name followed by a number — for example, lycopene33 is the 33rd experiment within the lycopene project.

Experiments are how you break a big project into manageable, testable chunks. A good experiment name reflects the sequence of work, not its content. Content details go inside the folder and issue description. Example:

Experiment: lycopene33
Subgoal: Find the optimum promoter strength for controlling the dxs gene in the lycopene-producing plasmid.

This experiment supports the overarching goal of the lycopene project but is only one step in a longer sequence. Other experiments might focus on cloning alternative enzymes, testing carbon sources, or optimizing growth conditions.

This structured naming enables automation, versioning, and filtering. It also helps collaborators and future users understand how each piece fits into the broader effort.

Design Names vs. Physical Samples

In this tutorial, a name like pLYC2 refers to a designed DNA sequence—a digital object defined in a GenBank file or construction plan. That sequence is the reference point. It may not yet exist, it may exist in multiple forms, or it may prove unstable and never assemble successfully. Regardless, the name refers to the intended design, not a physical tube.

Historically, names like pBR322 typically referred to a physical plasmid that had been isolated and shared—a specific lineage of DNA passed between labs. Its exact sequence might be assumed but rarely directly confirmed. Today, with reliable full-plasmid sequencing and gene synthesis, we don’t need to rely on inherited samples; we can recreate constructs directly from sequence. That shifts the baseline: names refer to sequence-defined designs, and physical instances are treated as separate, trackable entities.

In this system:

• A construct is the designed DNA sequence.
• A clone is a single isolate that may (or may not) match that design.
• A sample is a physical preparation or culture of a clone.

Later tutorials will explain how to label and track clones and samples. For now, the key principle is that your naming starts from a digital sequence object. That foundation supports clearer documentation, reproducibility, and experimental interpretation—especially when things don’t go as planned.

Plasmid Naming Conventions

Plasmids are named using a lowercase “p” and a project-specific prefix. Use sequential numbers:

• Format: pLYC1, pLYC2, ...
• Keep the length 4-6 characters to balance uniqueness with the ability to write it on a tube cap
• Do not use descriptive names like StrongPromoterGGPPS-pLYC22.

Descriptive names, while initially helpful, tend to grow unwieldy and ambiguous. For example, what begins as 'StrongPromoterGGPPS-pLYC22' may later include more variables, making names long and inconsistent. Short names like pLYC22 can be reliably printed on tubes and cross-referenced with detailed annotations in maps and documentation.

Naming Synthetic DNAs

Synthetic DNAs include oligos, gBlocks, and synthesized plasmids. Like plasmids, naming consistency here is vital. Prefixes help clarify type and origin at a glance, which is especially useful when scanning inventory files or browsing digital folders.

• Oligos: Use o<PROJECT> prefix, e.g., oLYC1, oLYC2
• GBlocks: Use g<PROJECT> prefix, e.g., gLYC1
• Clonal Plasmids from synthesis: Follow plasmid naming conventions
• Oligo Pools: Optional l<PROJECT> prefix, e.g., lLYC1

Numbers are Cheap; Collisions are Expensive

When you’re designing a project, mistakes and revisions are inevitable. You might design an oligo or gBlock, give it a name, and even order it — only to later realize it needs to change. That’s fine. But once a name has been used in any persistent context — committed to GitHub, sent to synthesis, or written on a tube — you should treat it as permanent.

Don’t overwrite old names with new sequences or meanings. For example, if you redesign an oligo originally labeled oBYC14 but keep the same name, it’s easy to forget which version is in the freezer — or worse, trust the wrong sequence in simulation or documentation. This is how errors propagate.

Collisions aren’t limited to oligos. The same principle applies to files, plasmids, gBlocks, and strain names. Once something has a name in the repo, that name should refer to exactly one version of a real thing.

So don’t recycle. If you revise a design, just increment to the next number. It’s cheap to make oBYC15. It’s expensive to spend hours debugging a mix-up caused by duplicate names.

Unique names for unique things — always.

Folder Structure

On your computer, organize files by project and subfolders:

To see a concrete example of this structure in practice, visit the example project directory in the course GitHub repository:
cloning-tutorials/examples/lycopene

All data should reside in a structured directory named exactly after the project. This top-level folder will house all planning documents, experimental results, and inventories.

lycopene/
├── Docs/
├── Experiments/
└── Inventory/

• Docs: Emails, publication notes, project overview
• Experiments: Each experiment has its own folder (lycopene1, lycopene2, ...)
• Inventory: Track all physical materials, organized by freezer (Minus20, Minus80, Fridge)

In the lycopene example:

• Docs/README.md could contain a summary of the project goal or a link to relevant papers.

• Experiments/lycopene33/ holds folders like Construction and Maps where you'll see placeholders for your design and genbank files.

Example Experiment folder structure:

lycopene33/
├── Construction/
├── Maps/
├── Sequencing/
├── Assays/
└── LabSheets/

This layout mirrors the workflow of a synthetic biology experiment—from planning (Construction), to execution (Maps, Sequencing), to analysis (Assays), and finally lab-specific logistics (LabSheets).

File Types and Conventions

• Construction files: .txt
• DNA sequences: TSV format (IDT-style) or annotated Genbank files (.seq, .gb, .ape)
• Oligos under 60bp: 25nm scale; 60+bp: 100nm
• All naming and file conventions should match what is physically labeled in the lab.

Proper formats reduce ordering errors, improve readability, and allow automated tools to validate or simulate designs. Genbank files should include full annotations for every promoter, CDS, terminator, origin, and sequencing primer site. TSV files should use standard fields as required by synthesis companies (e.g., IDT).

Each sequence should only exist once in the repository. Avoid duplicating the same DNA sequence across multiple files or folders. Duplicates can easily drift apart — differing in name, annotation, or actual sequence — which leads to confusion and possible experimental error. Instead, reference the original file consistently throughout Construction Files and documentation.

Following this structure allows for efficient collaboration, easier debugging, and better long-term data management.

Optional: GitHub Integration

Who Should Use GitHub

If you are a BioE 140L student, you can ignore this entire GitHub section — it’s optional for your course. You will work locally on your computer and submit a zipped version of your project folder at the end of the term.

For all other users (iGEM project leads, master's students, PhD students, or postdocs), you are expected to use GitHub to manage your project. You do not need to create a repository yourself — your instructor will create one for you using an academic GitHub account and invite you as a collaborator. This ensures the project is properly managed and free under academic terms.

What Belongs in the Repo

Your GitHub repository is not your scratchpad. Tools like Benchling, ApE, or Google Drive are perfect for developing ideas, storing fragments, and iterating freely — and many institutions require you to retain all such records. That creative mess is essential, but it doesn’t belong in the repo.

The repository is where your clean, intentional work goes. It should contain the design files for constructs you intend to order or assemble, the protocols you plan to follow, and the experiments you are committing to carry out. Committing these to GitHub is the first step in making your work real — it marks your intention and becomes the basis for syncing with what actually happens in the lab.

Working with GitHub

Once your account is added to the repo, you’ll be able to:

• View your project from any browser

• Clone the repo to your computer

• Add new files, make edits, and sync them back to GitHub

Getting Started with GitHub Desktop

If you are unfamiliar with GitHub, you do not need to learn command-line Git. Instead, use GitHub Desktop, a free graphical application.

To get started:

1. Install GitHub Desktop.

2. Visit your repository page (you will receive a link, click it when you see it because they expire).

3. Click the green "Code" button and select "Open with GitHub Desktop".

4. Follow prompts to clone the repo to your computer.

5. Make edits as usual, then use the GitHub Desktop interface to commit and push changes.

To learn the essential GitHub vocabulary and actions, refer to this focused introduction:
GitHub: Hello World Guide
It explains key concepts like “cloning a repository,” “committing changes,” and “pushing updates.” There are also many video tutorials online, and tools like ChatGPT can help if you get stuck.

This tutorial site is itself hosted in a GitHub repository. You can view the course repo here:
cloning-tutorials GitHub repo
And the example project directory:
examples/

Using GitHub Issues to Track Experiments

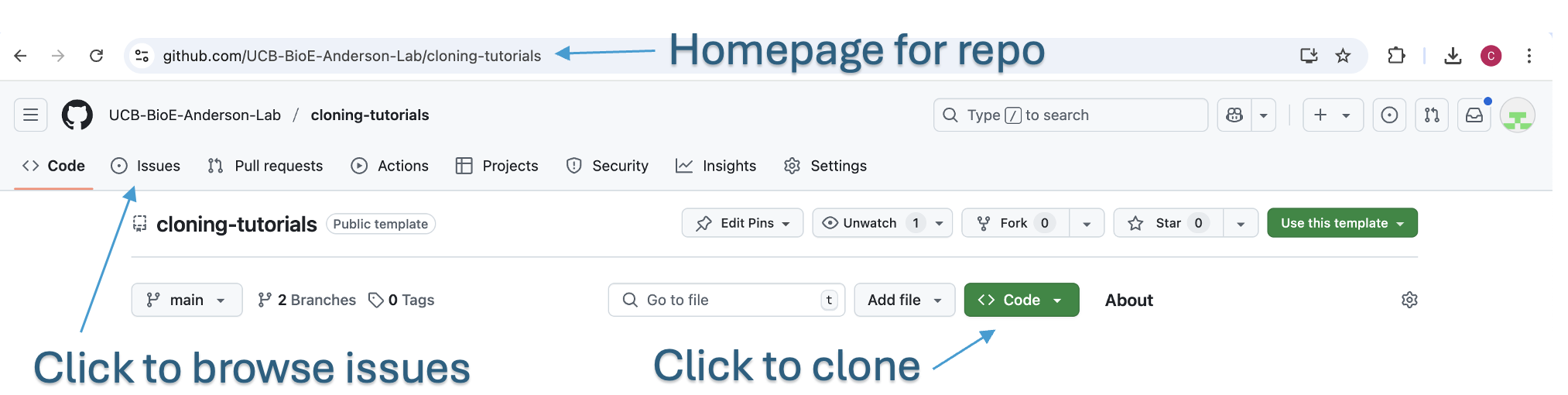

Each experiment (e.g., lycopene33) should have a corresponding GitHub Issue in your repository, which you can find by clicking the “Issues” tab at the top of the repo page (see screenshot above).

• Add dated updates describing what you did in lab on a given day, including links to data files or images, and what you observed

• Upload photos of plates, gels, or cultures

• Record observations, commentary, and troubleshooting

• Discuss results or link to analysis charts

The first block in each issue should clearly explain the goal of the experiment. The writing should assume that another student may be reading it later, so:

• Use proper names (e.g., pLYC33 instead of “the plasmid”)

• Avoid internal shorthand that wouldn’t be clear to others

• Be specific about which clone or construct is being used

Although your repo may be private now, it may be made public in the future. Write with that audience in mind.

An example issue for lycopene33 is provided in the cloning repo: lycopene33 issue
